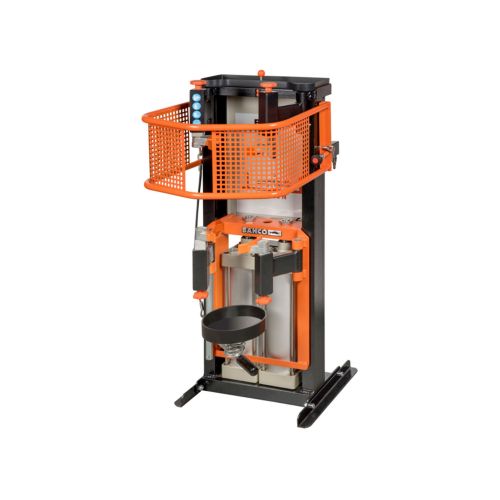

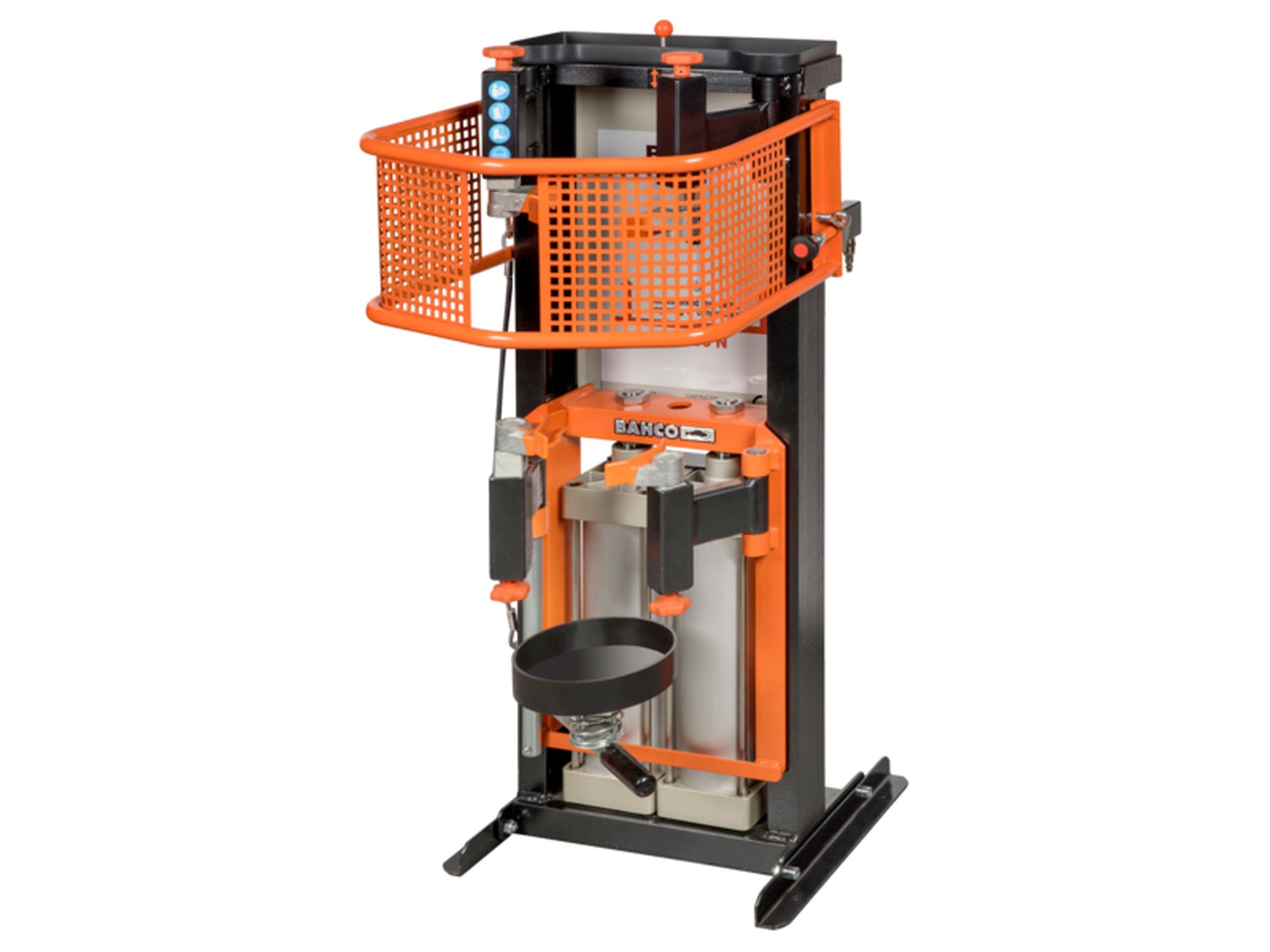

Double pneumatic piston shock absorber compressor with protective grid
- MacPherson spring compressor with double pneumatic piston system
- 24000N maximum compressing capacity
- Protective grid added in order to increase the safety, absorbing potential spring impacts
- It can compress more than 95% of the springs in the market from light vehicle to 4x4 wheels drives
- Working pressure: 5-10 atm
- Cylinder stroke: 300 mm
- Opening width between jaws: 450 mm
- Provided with four grabbing hooks, completely independent from each other
- Easy and quick operating mode
- Completely safe
- - New protective grid
- - Spring anti-slippage steel cable
- - Safety valve that prevents working without the protection set
- - Shock absorber holder
- - Larger base avoiding tilting and offering more stability
- BS30AC1 height extension available as an option, to increase 34 cm the device, and to improve the movability thanks to the two rubber wheels
- BS10AC2 universal plate / adaptor as an option for shock absorbers with regulation ring
- CE Certified acc. to 2006/42/EC
Listado de referencias
| Referencia | Descripción | Ean | |
|---|---|---|---|
| BS30PG | Double pneumatic piston shock absorber compressor with protective grid | 7314150436644 |
